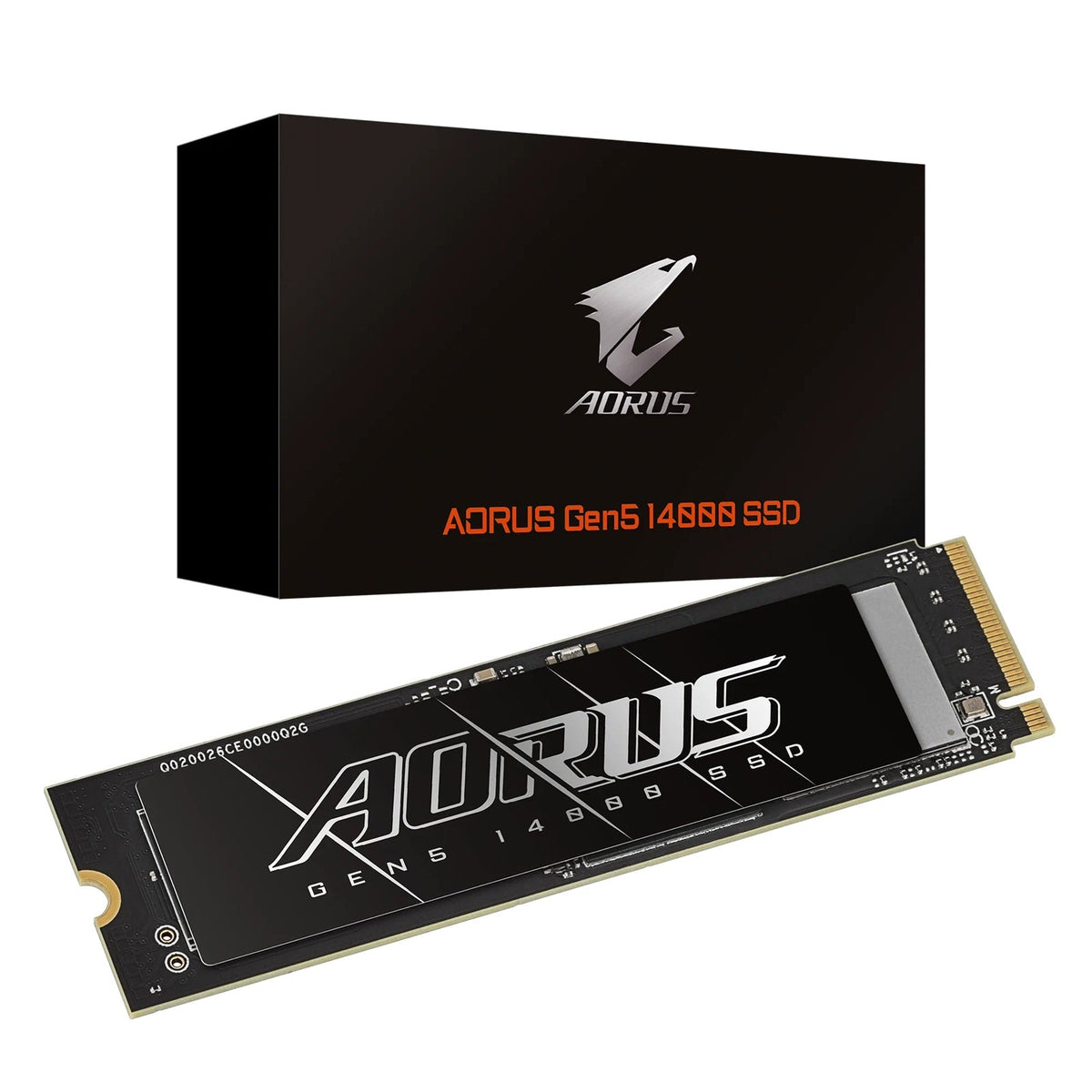

Gigabyte AORUS Gen5 14000 SSD 1TB PCIe5x4 NVMe2.0 M.2 3D TLC LPDDR4 2GB 13600/10200MB/s 80×22×3.5mm MTBF1.6M 11.5W 5yr/700TBW

Gigabyte AORUS Gen5 14000 SSD 1TB PCIe5x4 NVMe2.0 M.2 3D TLC LPDDR4 2GB 13600/10200MB/s 80×22×3.5mm MTBF1.6M 11.5W 5yr/700TBW Interface PCI-Express 5.0x4, NVMe 2.0 Form Factor M.2 2280 Total Capacity 1000GB NAND 3D TLC NAND Flash External DDR Cache LPDDR4 2GB Sequential Read speed Up to 13,600 MB/s Sequential Write speed Up to 10,200MB/s Dimension 80 x 22 x 3.5 mm Mean time between failure (MTBF) 1.6 million hours Max. Operating Power Read : 11.5W; Write : 11.5W Power Consumption (Idle, PS3) < 144mW Power Consumption(PS4, L1.2) < 85mW Temperature (Operating) 0°C to 70°C Temperature (Storage) -40°C to 85°C Warranty 1. Limited 5-years or 700TBW. 2. Limited warranty based on 5 years or 700TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. ) *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. 3. When the usage of an NVME SSD as indicated by the 'Percentage Used' (SMART ID: 05) in SMART page of 'GIGABYTE SSD toolbox' reaches 100 means out of warranty. (A new unused product will show the number of 0) Note • Test system configuration: configuration may vary by models, we will choose the latest platform for verification. • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0. • Speeds based on internal testing. Actual performance may vary. • 1GB = 1 billion bytes. Actual useable capacity may vary. * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice. * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration. * All trademarks and logos are the properties of their respective holders. * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

• Brand: Gigabyte
• Category: Hard Disk Drives - SSD
• Subcategory: M.2 NVMe PCIe SSD
• SKU: HBG-AG514K1TBM2-1TB

Product Specifications
