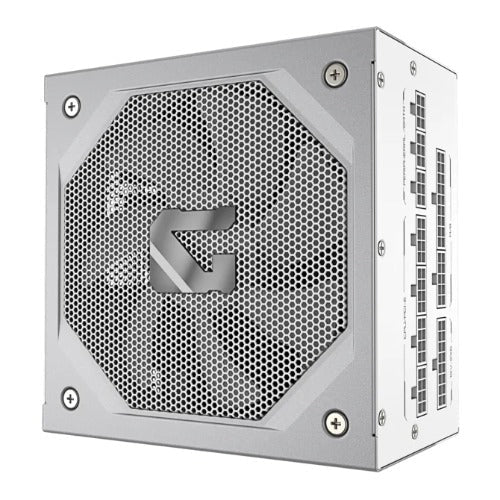

GIGABYTE GAMING 750GM PG5 ICE 750W 80+ Gold ATX3.1 PCIe5 16pin APFC 90% 135mm FDB 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 100k MTBF FM

GIGABYTE GAMING 750GM PG5 ICE 750W 80+ Gold ATX3.1 PCIe5 16pin APFC 90% 135mm FDB 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 100k MTBF FM Model GP-GME750GM PG5 ICE Type Intel Form Factor ATX 12V v3.1 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac Input Current 10-5A Input Frequency 50-60 Hz Output Capacity 750W Dimensions 150 x 150 x 86mm Fan Type 135mm FDB Fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protections OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP Power Good Signal 100-150ms Hold Up Time >17ms(80% load) Cable Type Embossed, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1

• Brand: Gigabyte
• Category: Power Supplies
• Subcategory: ATX/PS2
• SKU: CFGP-GME750GMPG5ICE

Product Specifications
