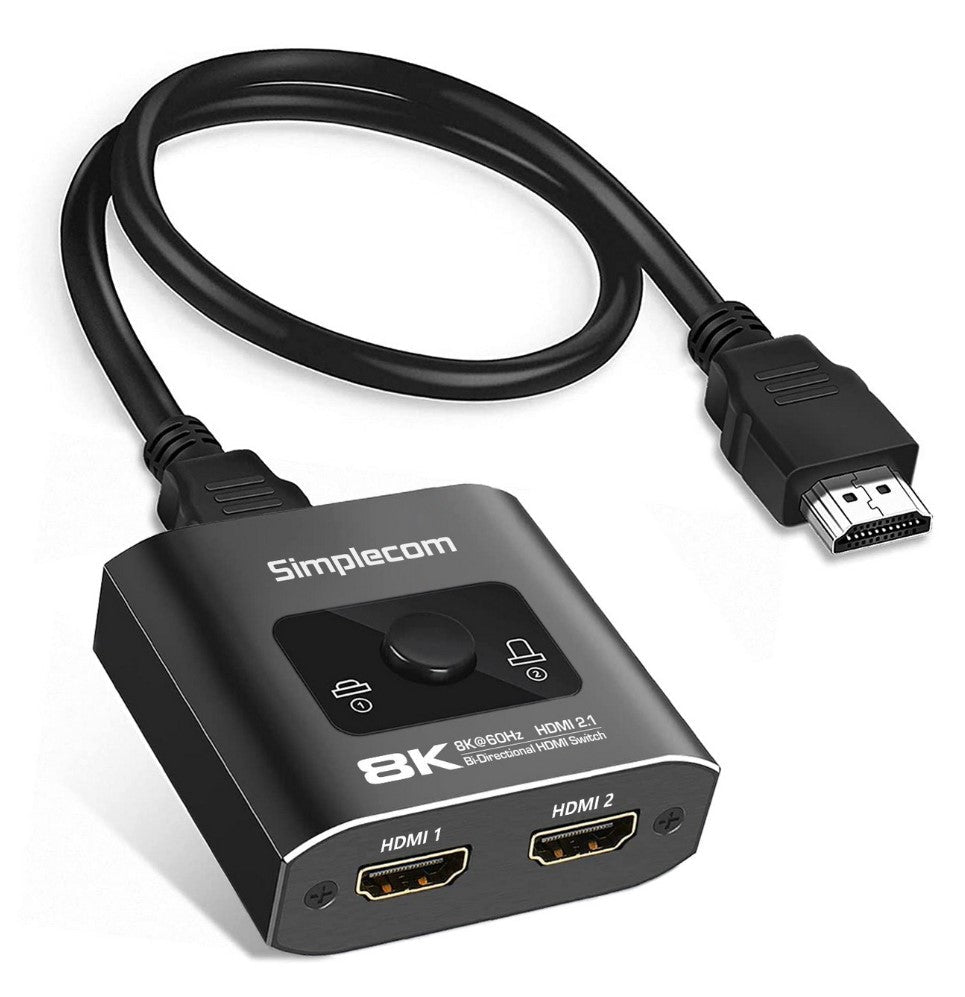

Simplecom CM302V2 Bi-Directional 2 Way HDMI 2.1 Switch Selector 8K

Simplecom CM302V2 Bi-Directional 2 Way HDMI 2.1 Switch Selector 8K Features Bi-Directional HDMI 2.1 switch for toggling between 2 HDMI sources or displays Quickly switch video sources or displays without having to swap cables Durable aluminium alloy casing, also efficiently dissipate heat Portable and compact size, easy to install HDMI 2.1 compliant, support bandwidth up to 48Gbps Support HDMI video resolution up to 8K@60hz HDCP 2.3 compliant, wide compatibility with most HDMI source devices Powered by HDMI source device, no external power required Specifications Model: CM302v2 HDMI Version: HDMI 2.1 Video Resolution Support: up to 1080@240Hz, 4K@120Hz, 8K@60Hz Audio Format Support: DTS-HD, Dolby True HD, Dolby Digital, Dolby Atmos, LPCM 7.1 HDR Format Support: HDR10 HDCP Version Support: HDCP 2.3 Max Bandwidth: 48Gbps Max cable distance: Input<2M, Output<2M Max Operation Current: 15mA Power Input: USB DC 5V (Backup power only) Operating Temperature: (-15 to +55°C) Dimension (L x W x H): 53x52x21mm Weight: 45g Package Contents 1 x Bi-Directional HDMI Switch 1 x HDMI cable 1 x User Manual Important Notes: The length of the HDMI cable connected to both ends of the switch should not exceed 2 meters. This is a manual HDMI switch and does not support automatic switching. Powered by HDMI source device, with USB-C port for backup power if no enough power from HDMI. Two screens cannot display simultaneously under 1 Input 2 Outputs mode.

• Brand: Simplecom
• Category: Cables
• Subcategory: Convertors
• SKU: CBSI-CM302V2

Product Specifications
