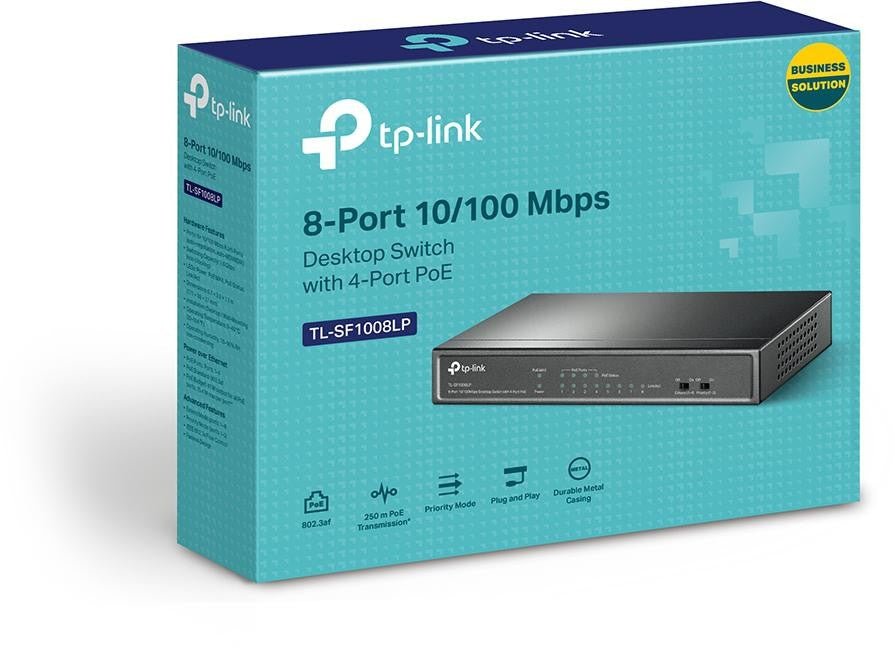

TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch with 4-Port PoE, Up To 41W For all PoE Ports

TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch with 4-Port PoE • 8× 10/100 Mbps RJ45 ports • 4× PoE ports transfer data and power on individual cables • Works with IEEE 802.3af compliant PDs • Up to 250m data and power transmitting range under Extend Mode** • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application • Supports PoE Power up to 41 W for all PoE ports* • Plug and play with no configuration required HARDWARE FEATURES Interface • 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A) PoE Ports (RJ45) • Standard: 802.3 af compliant • PoE Ports: Ports 1–4 • Power Supply: 41 W Backbound Bandwidth 1.6 Gbps Mac Address Table 2K Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) Max Power Consumption • 2.2 W (220 V/ 50 Hz. no PD connected) • 47.1 W (220 V/ 50 Hz. with 41 W PD connected) Max Heat Dissipation • 7.5 BTU/h(no PD connected) • 160.61 BTU/h(with 41 W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions • Compatible With IEEE 802.3af Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode OTHERS Certification FCC, CE, RoHS Package Contents • TL-SF1008LP • Power Adapter • Installation Guide Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

• Brand: TP-LINK
• Category: Network - Consumer
• Subcategory: Network Switches
• SKU: NWTL-SF1008LP

Product Specifications
