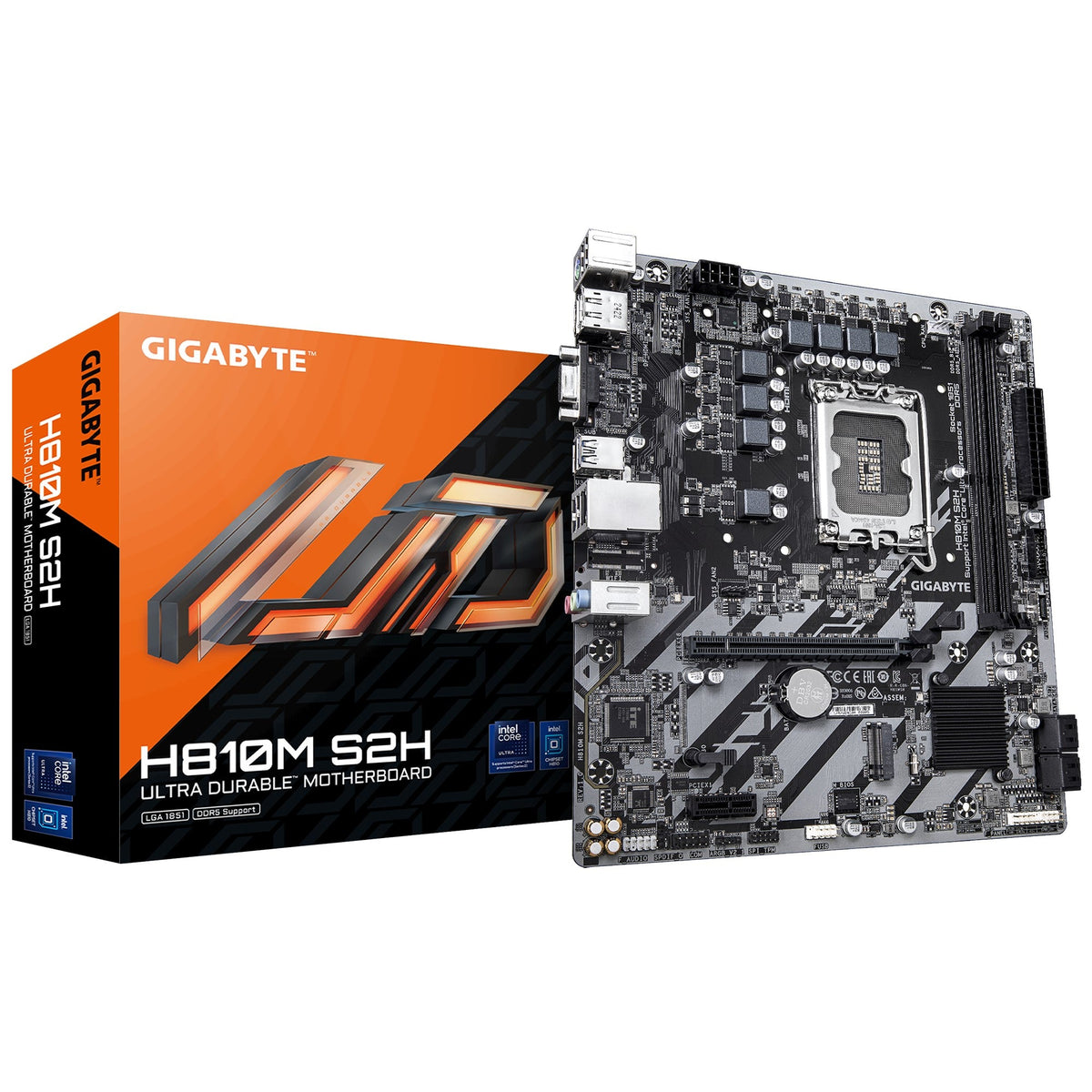

Gigabyte H810M S2H Intel LGA 1851 ATX Motherboard, 2x DDR5 ~128GB, 1x PCI-E x16, 1x PCI-E x1, 1x M.2, 4x SATA, 3x USB 3.2, 3x USB 2.0

Gigabyte H810M S2H Intel LGA 1851 ATX Motherboard, 2x DDR5 ~128GB, 1x PCI-E x16, 1x PCI-E x1, 1x M.2, 4x SATA, 3x USB 3.2, 3x USB 2.0 Specification: CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors Chipset Intel® H810 Express Chipset Memory Support for DDR5 6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz * Support for DisplayPort 2.1 version. - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz Expansion Slots 1 x PCI Express x16 slot - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage Interface 1 x M.2 connector 4 x SATA 6Gb/s connectors USB Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

• Brand: Gigabyte
• Category: Motherboards
• Subcategory: Intel Socket 1851 (15th Gen)
• SKU: MBG-H810MS2H

Product Specifications
